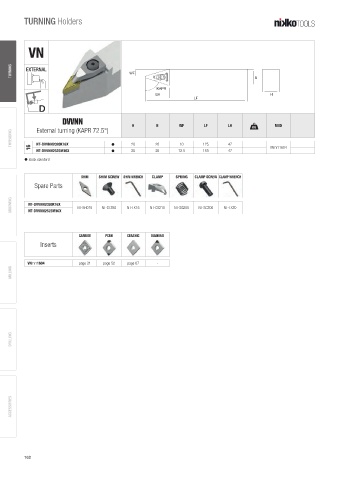

Page 164 - Nikko Tools - Update 2019

TURNING Holders

VN

TURNING EXTERNAL WF B

KAPR
LH H
LF
D
DVVNN
H B WF LF LH A MIID
External turning (KAPR 72.5°)
THREADING NT-DVVNN2020K16X h 20 20 10 125 47

16
NT-DVVNN2525M16X h 25 25 12.5 150 47 VN 1604
h stock standard

SHIM SHIM SCREW SHIM WRENCH CLAMP SPRING CLAMP SCREW CLAMP WRENCH
Spare Parts

GROOVING NT-DVVNN2020K16X NT-SH075 NT-ST250 NT-TX15 NT-CS210 NT-SG200 NT-SC200 NT-TX20

NT-DVVNN2525M16X

CARBIDE PCBN CERAMIC DIAMOND
Inserts

VN 1604 page 31 page 52 page 67 -
MILLING

DRILLING

ACCESSORIES
