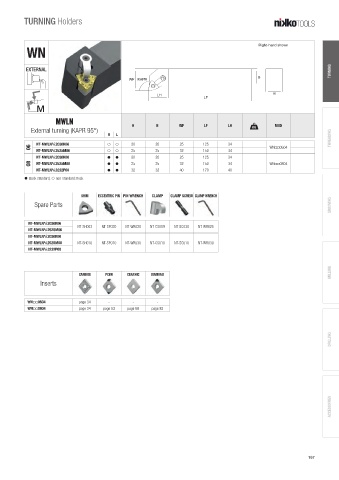

Page 169 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
WN

TURNING
EXTERNAL
B
WF KAPR
H
LH
LF
M
MWLN
H B WF LF LH A MIID
External turning (KAPR 95°)
R L THREADING
NT-MWLN /L2020K06 f f 20 20 25 125 34
R
06 WN 0604
NT-MWLN /L2525M06 f f 25 25 32 150 34
R
R
NT-MWLN /L2020K08 h h 20 20 25 125 34
08 NT-MWLN /L2525M08 h h 25 25 32 150 34 WN 0804
R
NT-MWLN /L3232P08 h h 32 32 40 170 40
R
h stock standard, f non-standard stock
SHIM ECCENTRIC PIN PIN WRENCH CLAMP CLAMP SCREW CLAMP WRENCH
GROOVING
Spare Parts

R
NT-MWLN /L2020K06
NT-SH003 NT-SP020 NT-WR020 NT-CS009 NT-SC030 NT-WR025
NT-MWLN R /L2525M06
R
NT-MWLN /L2020K08
R
NT-MWLN /L2525M08 NT-SH010 NT-SP010 NT-WR030 NT-CS010 NT-SC010 NT-WR030
NT-MWLN /L3232P08
R
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

WN 0604 page 34 - - -
WN  0804 page 34 page 53 page 68 page 83

DRILLING

ACCESSORIES

167
