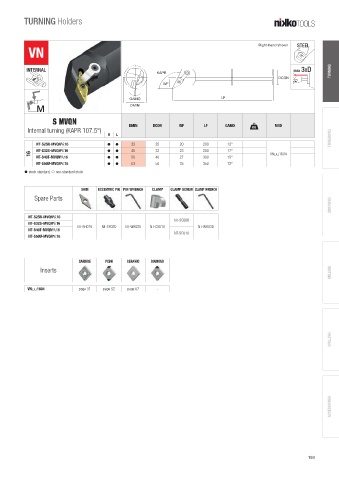

TURNING Holders

Right-hand shown STEEL
VN

INTERNAL max 3XD TURNING
KAPR
DCON
WF

LF
GAMO
M DMIN
S MVQN
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 107.5°)
R L THREADING
NT-S25R-MVQN /L16 h h 33 25 20 200 12°
R
NT-S32S-MVQN R /L16 h h 40 32 23 250 17°
16 VN 1604
NT-S40T-MVQN /L16 h h 50 40 27 300 15°
R
R
NT-S50U-MVQN /L16 h h 63 50 33 350 12°
h stock standard, f non-standard stock
SHIM ECCENTRIC PIN PIN WRENCH CLAMP CLAMP SCREW CLAMP WRENCH
Spare Parts
GROOVING

NT-S25R-MVQN /L16
R
NT-SC008
R
NT-S32S-MVQN /L16
NT-SH075 NT-SP020 NT-WR020 NT-CS010 NT-WR030
R
NT-S40T-MVQN /L16
NT-SC010
NT-S50U-MVQN /L16
R
CARBIDE PCBN CERAMIC DIAMOND
MILLING
Inserts

VN 1604 page 31 page 52 page 67 -
