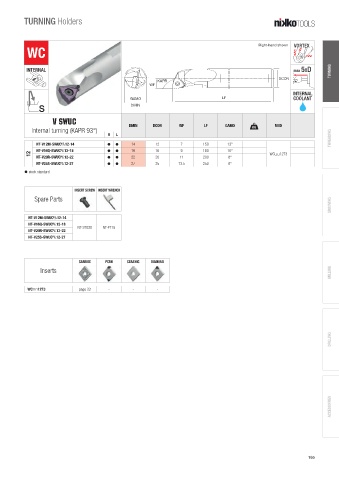

Page 167 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown VORTEX
WC

INTERNAL max 5XD TURNING
DCON
KAPR
WF
INTERNAL
GAMO LF COOLANT
S DMIN
V SWUC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 93°)
R L THREADING
NT-V12M-SWUC /L12-14 h h 14 12 7 150 13°
R
NT-V16Q-SWUC R /L12-18 h h 18 16 9 180 10°
12 WC 12T3
NT-V20R-SWUC /L12-22 h h 22 20 11 200 8°
R
R
NT-V25S-SWUC /L12-27 h h 27 25 13.5 250 8°
h stock standard
INSERT SCREW INSERT WRENCH
Spare Parts
GROOVING

NT-V12M-SWUC /L12-14
R
R
NT-V16Q-SWUC /L12-18
NT-ST020 NT-FT15
NT-V20R-SWUC /L12-22
R
NT-V25S-SWUC /L12-27
R
CARBIDE PCBN CERAMIC DIAMOND
MILLING
Inserts

WC 12T3 page 33 - - -

DRILLING

ACCESSORIES

165
