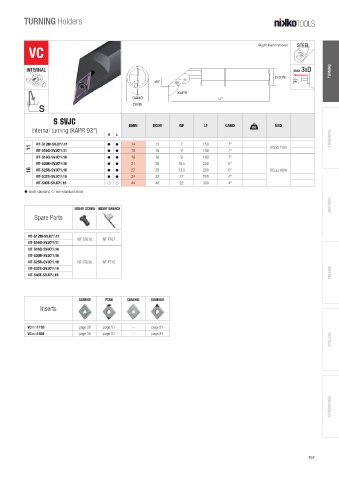

Page 159 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
VC

INTERNAL max 3XD TURNING
DCON
WF
KAPR
GAMO LF
S DMIN
S SVJC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 93°)
R L THREADING
NT-S12M-SVJC /L11 h h 14 12 7 150 7°
R
11 VC 1103
R
NT-S16Q-SVJC /L11 h h 18 16 9 180 7°
R
NT-S16Q-SVJC /L16 h h 18 16 9 180 7°
NT-S20R-SVJC /L16 h h 21 20 10.5 200 6°
R
16 NT-S25R-SVJC /L16 h h 27 25 13.5 200 6° VC 1604
R
NT-S32S-SVJC /L16 h h 34 32 17 250 4°
R
R
NT-S40T-SVJC /L16 f f 44 40 22 300 4°
h stock standard, f non-standard stock
GROOVING
INSERT SCREW INSERT WRENCH
Spare Parts
NT-S12M-SVJC /L11
R
NT-ST010 NT-FT07
NT-S16Q-SVJC R /L11
R
NT-S16Q-SVJC /L16
NT-S20R-SVJC /L16
R
NT-S25R-SVJC /L16 NT-ST030 NT-FT15
R
NT-S32S-SVJC /L16
R
NT-S40T-SVJC /L16 MILLING
R
CARBIDE PCBN CERAMIC DIAMOND
Inserts

VC 1103 page 30 page 51 - page 81
VC  1604 page 30 page 51 - page 81
DRILLING

ACCESSORIES

157
