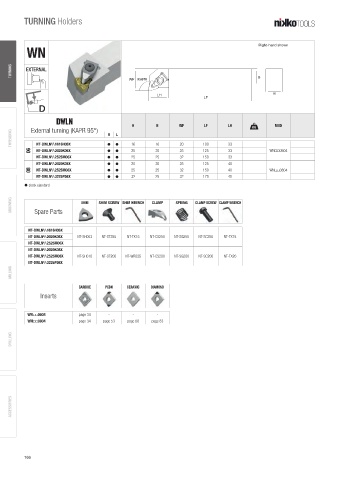

TURNING Holders

Right-hand shown
WN

TURNING EXTERNAL

WF KAPR B

H
LH
LF
D
DWLN
H B WF LF LH A MIID
External turning (KAPR 95°)
THREADING NT-DWLN /L1616H06X h h L 16 16 20 100 33
R
R
06 NT-DWLN R /L2020K06X h h 20 20 25 125 33 WN 0604
NT-DWLN R /L2525M06X h h 25 25 32 150 33
NT-DWLN /L2020K08X h h 20 20 25 125 40
R
08 NT-DWLN /L2525M08X h h 25 25 32 150 40 WN 0804
R
NT-DWLN /L3225P08X h h 32 25 32 170 40
R
h stock standard
GROOVING Spare Parts SHIM SHIM SCREW SHIM WRENCH CLAMP SPRING CLAMP SCREW CLAMP WRENCH

R
NT-DWLN /L1616H06X
NT-DWLN R /L2020K06X NT-SH003 NT-ST250 NT-TX15 NT-CS250 NT-SG250 NT-SC250 NT-TX15
NT-DWLN R /L2525M06X
NT-DWLN /L2020K08X
R
NT-DWLN /L2525M08X NT-SH010 NT-ST200 NT-WR025 NT-CS200 NT-SG200 NT-SC200 NT-TX20
R
NT-DWLN /L3225P08X
R
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

WN 0604 page 34 - - -
WN  0804 page 34 page 53 page 68 page 83
