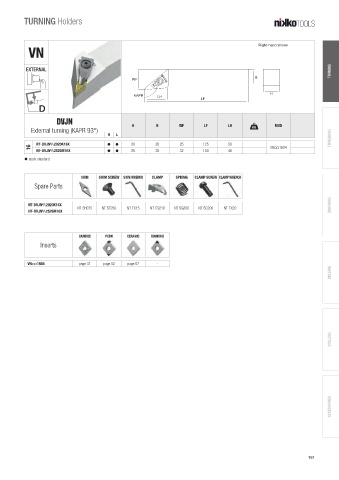

Page 163 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
VN

TURNING
EXTERNAL
B
WF
H
KAPR LH
LF
D
DVJN
H B WF LF LH A MIID
External turning (KAPR 93°)
R L THREADING
R
NT-DVJN /L2020K16X h h 20 20 25 125 50
16 VN 1604
NT-DVJN /L2525M16X h h 25 25 32 150 46
R
h stock standard

SHIM SHIM SCREW SHIM WRENCH CLAMP SPRING CLAMP SCREW CLAMP WRENCH
Spare Parts

R
NT-DVJN /L2020K16X GROOVING
NT-SH075 NT-ST250 NT-TX15 NT-CS210 NT-SG200 NT-SC200 NT-TX20
NT-DVJN /L2525M16X
R
CARBIDE PCBN CERAMIC DIAMOND
Inserts

VN 1604 page 31 page 52 page 67 -
MILLING

DRILLING

ACCESSORIES

161
