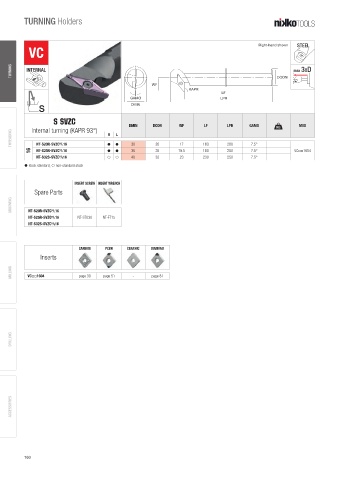

Page 162 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
VC

TURNING INTERNAL DCON max 3XD

WF
KAPR
LF
GAMO LPR
S DMIN
S SVZC
DMIN DCON WF LF LPR GAMO A MIID
Internal turning (KAPR 93°)
THREADING NT-S20R-SVZC /L16 h h L 30 20 17 183 200 7.5°
R
R
16 NT-S25R-SVZC /L16 h h 35 25 19.5 180 200 7.5° VC 1604
R
NT-S32S-SVZC /L16 f f 40 32 23 230 250 7.5°
R
h stock standard, f non-standard stock

INSERT SCREW INSERT WRENCH
Spare Parts
GROOVING NT-S20R-SVZC /L16

R
NT-S25R-SVZC /L16 NT-ST030 NT-FT15
R
NT-S32S-SVZC /L16
R

CARBIDE PCBN CERAMIC DIAMOND
Inserts
MILLING VC 1604 page 30 page 51 - page 81

DRILLING

ACCESSORIES

160
