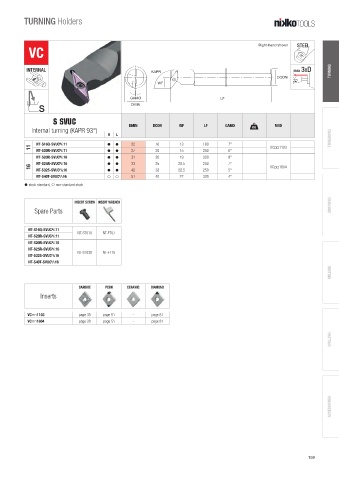

Page 161 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
VC

INTERNAL max 3XD
KAPR TURNING
DCON
WF

GAMO LF
S DMIN
S SVUC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 93°)
R L THREADING
NT-S16Q-SVUC /L11 h h 22 16 13 180 7°
R
11 VC 1103
R
NT-S20R-SVUC /L11 h h 27 20 15 200 6°
NT-S20R-SVUC /L16 h h 31 20 19 200 8°
R
R
NT-S25R-SVUC /L16 h h 33 25 20.5 200 7°
16 VC 1604
NT-S32S-SVUC /L16 h h 42 32 22.5 250 5°
R
NT-S40T-SVUC /L16 f f 51 40 27 300 4°
R
h stock standard, f non-standard stock
INSERT SCREW INSERT WRENCH GROOVING
Spare Parts

NT-S16Q-SVUC /L11
R
NT-ST010 NT-FT07
NT-S20R-SVUC R /L11
NT-S20R-SVUC /L16
R
NT-S25R-SVUC /L16
R
NT-ST030 NT-FT15
NT-S32S-SVUC /L16
R
NT-S40T-SVUC /L16
R
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

VC 1103 page 30 page 51 - page 81
VC  1604 page 30 page 51 - page 81

DRILLING

ACCESSORIES

159
