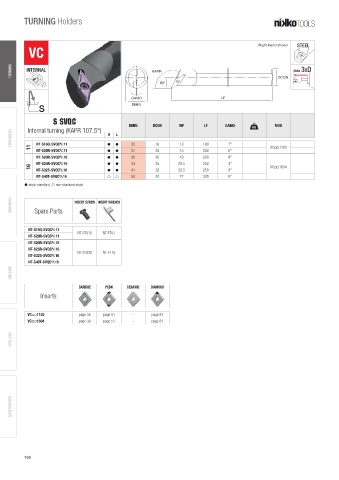

Page 160 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
VC

TURNING INTERNAL KAPR max 3XD

WF DCON

GAMO LF
S DMIN
S SVQC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 107.5°)
THREADING NT-S16Q-SVQC /L11 h h L 22 16 13 180 7°
R
R
11
NT-S20R-SVQC /L11 h h 27 20 15 200 6° VC 1103
R
NT-S20R-SVQC /L16 h h 30 20 19 200 8°
R
R
NT-S25R-SVQC /L16 h h 34 25 20.5 200 4°
16 VC 1604
NT-S32S-SVQC /L16 h h 41 32 22.5 250 8°
R
NT-S40T-SVQC /L16 f f 50 40 27 300 6°
R
h stock standard, f non-standard stock
GROOVING Spare Parts INSERT SCREW INSERT WRENCH

R
NT-S16Q-SVQC /L11
NT-ST010 NT-FT07
NT-S20R-SVQC R /L11
NT-S20R-SVQC /L16
R
NT-S25R-SVQC /L16
R
NT-ST030 NT-FT15
NT-S32S-SVQC /L16
R
NT-S40T-SVQC /L16
R
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

VC 1103 page 30 page 51 - page 81
VC  1604 page 30 page 51 - page 81

DRILLING

ACCESSORIES

158
