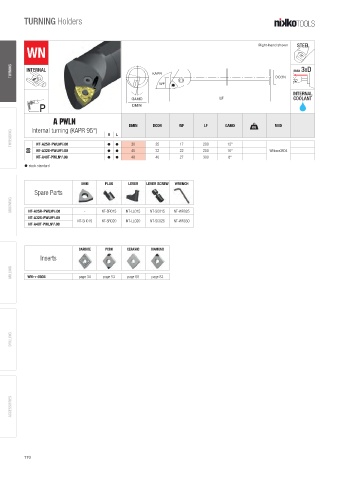

Page 172 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
WN

TURNING INTERNAL KAPR DCON max 3XD

WF
INTERNAL
GAMO LF COOLANT
P DMIN

A PWLN
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 95°)
THREADING NT-A25R-PWLN /L08 h h L 30 25 17 200 12°
R
R
08 NT-A32S-PWLN /L08 h h 40 32 22 250 10° WN 0804
R
NT-A40T-PWLN /L08 h h 48 40 27 300 8°
R
h stock standard

SHIM PLUG LEVER LEVER SCREW WRENCH
Spare Parts
GROOVING NT-A25R-PWLN /L08 - NT-SR015 NT-LL015 NT-SC015 NT-WR025

R
NT-A32S-PWLN /L08
R
NT-SH015 NT-SR020 NT-LL020 NT-SC025 NT-WR030
NT-A40T-PWLN /L08
R

CARBIDE PCBN CERAMIC DIAMOND
Inserts
MILLING WN 0804 page 34 page 53 page 68 page 83

DRILLING

ACCESSORIES

170
