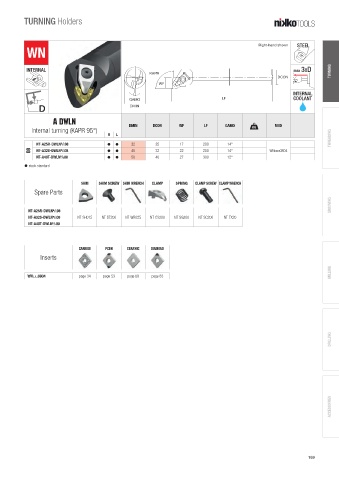

Page 171 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
WN

INTERNAL max 3XD TURNING
KAPR
DCON
WF
INTERNAL
GAMO LF COOLANT
D DMIN
A DWLN
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 95°)
R L THREADING
NT-A25R-DWLN /L08 h h 32 25 17 200 14°
R
08 NT-A32S-DWLN /L08 h h 40 32 22 250 14° WN 0804
R
NT-A40T-DWLN /L08 h h 50 40 27 300 12°
R
h stock standard

SHIM SHIM SCREW SHIM WRENCH CLAMP SPRING CLAMP SCREW CLAMP WRENCH
Spare Parts
GROOVING

NT-A25R-DWLN /L08
R
NT-A32S-DWLN /L08 NT-SH015 NT-ST200 NT-WR025 NT-CS200 NT-SG200 NT-SC200 NT-TX20
R
NT-A40T-DWLN /L08
R

CARBIDE PCBN CERAMIC DIAMOND
Inserts
MILLING
WN 0804 page 34 page 53 page 68 page 83

DRILLING

ACCESSORIES

169
