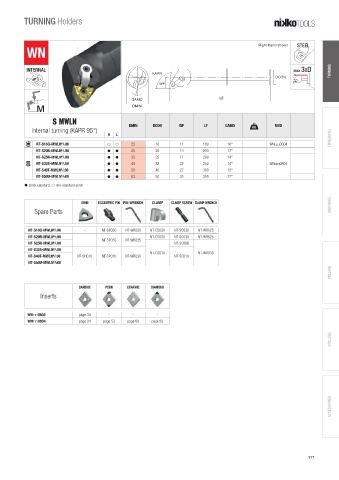

Page 173 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
WN

INTERNAL max 3XD TURNING
KAPR
DCON
WF

LF
GAMO
M DMIN
S MWLN
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 95°)
R L THREADING
06 NT-S16Q-MWLN /L06 f f 22 16 11 180 18° WN 0604
R
NT-S20R-MWLN /L08 h h 25 20 13 200 17°
R
NT-S25R-MWLN /L08 h h 32 25 17 200 14°
R
08 NT-S32S-MWLN /L08 h h 40 32 22 250 14° WN 0804
R
R
NT-S40T-MWLN /L08 h h 50 40 27 300 12°
NT-S50U-MWLN /L08 h h 63 50 35 350 12°
R
h stock standard, f non-standard stock
SHIM ECCENTRIC PIN PIN WRENCH CLAMP CLAMP SCREW CLAMP WRENCH GROOVING
Spare Parts

NT-S16Q-MWLN /L06 - NT-SP030 NT-WR020 NT-CS030 NT-SC030 NT-WR025
R
NT-S20R-MWLN /L08 NT-CS030 NT-SC030 NT-WR025
R
- NT-SP035 NT-WR025
NT-S25R-MWLN R /L08 NT-SC008
NT-S32S-MWLN /L08
R
NT-CS010 NT-WR030
R
NT-S40T-MWLN /L08 NT-SH010 NT-SP010 NT-WR030 NT-SC010
NT-S50U-MWLN /L08
R
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

WN 0604 page 34 - - -
WN 0804 page 34 page 53 page 68 page 83

DRILLING

ACCESSORIES
