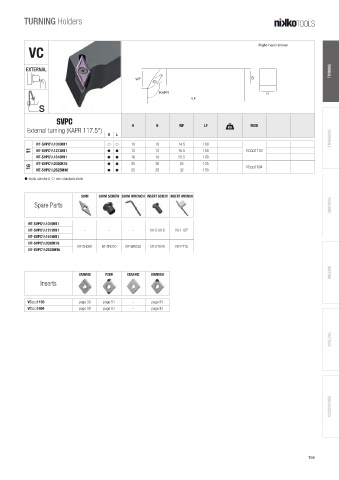

Page 157 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
VC

TURNING
EXTERNAL
WF B

KAPR H
LF
S
SVPC
H B WF LF A MIID
External turning (KAPR 117.5°)
R L THREADING
R
NT-SVPC /L1010H11 f f 10 10 14.5 100
11 NT-SVPC R /L1212H11 h h 12 12 16.5 100 VC 1103
NT-SVPC R /L1616H11 h h 16 16 20.5 100
R
NT-SVPC /L2020K16 h h 20 20 25 125
16 VC 1604
NT-SVPC R /L2525M16 h h 25 25 32 150
h stock standard, f non-standard stock

SHIM SHIM SCREW SHIM WRENCH INSERT SCREW INSERT WRENCH
GROOVING
Spare Parts

NT-SVPC /L1010H11
R
NT-SVPC R /L1212H11 - - - NT-ST010 NT-FT07
NT-SVPC R /L1616H11
NT-SVPC /L2020K16
R
NT-SH050 NT-SR010 NT-WR035 NT-ST040 NT-FT15
NT-SVPC R /L2525M16
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

VC 1103 page 30 page 51 - page 81
VC  1604 page 30 page 51 - page 81

DRILLING

ACCESSORIES
