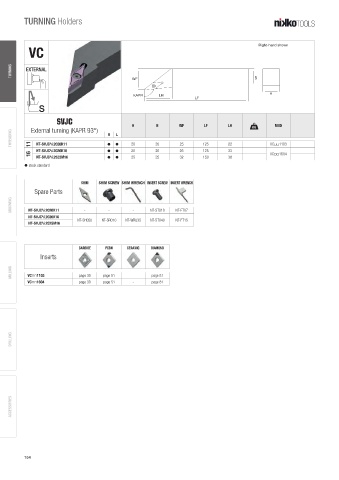

Page 156 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
VC

TURNING EXTERNAL

WF B

H
KAPR LH
LF
S
SVJC
H B WF LF LH A MIID
External turning (KAPR 93°)
THREADING 11 NT-SVJC /L2020K11 h h L 20 20 25 125 22 VC 1103
R
R
NT-SVJC /L2020K16 h h 20 20 25 125 33
R
16 VC 1604
NT-SVJC R /L2525M16 h h 25 25 32 150 38
h stock standard

SHIM SHIM SCREW SHIM WRENCH INSERT SCREW INSERT WRENCH
Spare Parts
GROOVING NT-SVJC /L2020K11 - - - NT-ST010 NT-FT07

R
NT-SVJC /L2020K16
R
NT-SH050 NT-SR010 NT-WR035 NT-ST040 NT-FT15
NT-SVJC R /L2525M16

CARBIDE PCBN CERAMIC DIAMOND
Inserts
MILLING VC 1103 page 30 page 51 - page 81

VC  1604 page 30 page 51 - page 81

DRILLING

ACCESSORIES
