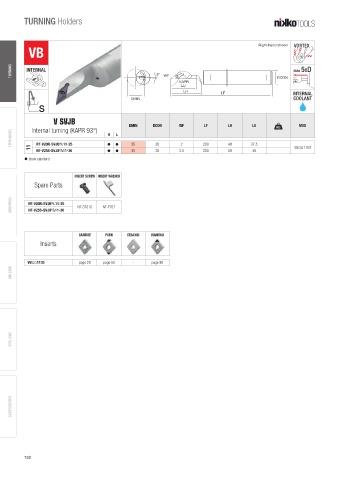

Page 154 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown VORTEX
VB

TURNING INTERNAL 5° WF max 5XD

KAPR DCON
LU
LH
LF INTERNAL
DMIN COOLANT
S
V SVJB
DMIN DCON WF LF LH LU A MIID
Internal turning (KAPR 93°)
THREADING NT-V20R-SVJB /L11-25 h h L 25 20 2 200 48 37.5
R
R
11
R
NT-V25S-SVJB /L11-30 h h 30 25 3.5 250 58 46 VB 1103
h stock standard

INSERT SCREW INSERT WRENCH
Spare Parts

GROOVING NT-V20R-SVJB /L11-25 NT-ST010 NT-FT07
R
NT-V25S-SVJB /L11-30
R

CARBIDE PCBN CERAMIC DIAMOND
Inserts

VB 1103 page 29 page 50 - page 80
MILLING

DRILLING

ACCESSORIES
