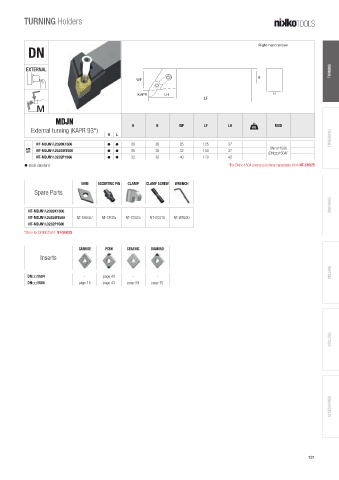

TURNING Holders

Right-hand shown
DN

TURNING
EXTERNAL
B
WF

KAPR LH H
LF
M
MDJN
H B WF LF LH A MIID
External turning (KAPR 93°)
R L THREADING
NT-MDJN /L2020K1506 h h 20 20 25 125 37
R
DN 1506
15 NT-MDJN /L2525M1506 h h 25 25 32 150 37 (DN 1504)*
R
NT-MDJN /L3232P1506 h h 32 32 40 170 42
R
h stock standard *For DN1504 please purchase separately shim NT-SH025
SHIM ECCENTRIC PIN CLAMP CLAMP SCREW WRENCH
Spare Parts
GROOVING

NT-MDJN /L2020K1506
R
NT-MDJN R /L2525M1506 NT-SH045* NT-SP025 NT-CS025 NT-SC010 NT-WR030
NT-MDJN /L3232P1506
R
*Shim for DNMG1504: NT-SH025

CARBIDE PCBN CERAMIC DIAMOND
Inserts
MILLING
DN  1504 - page 43 - -
DN  1506 page 16 page 43 page 59 page 75

DRILLING

ACCESSORIES

121
