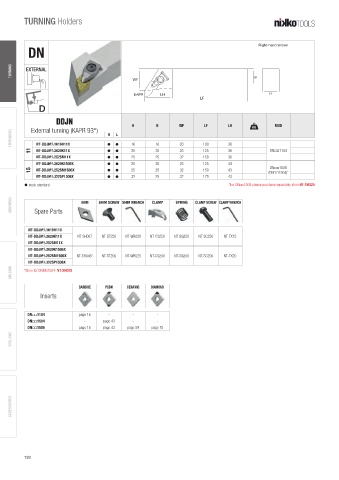

Page 122 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
DN

TURNING EXTERNAL

WF B

KAPR LH H
LF
D
DDJN
H B WF LF LH A MIID
External turning (KAPR 93°)
THREADING NT-DDJN /L1616H11X h h L 16 16 20 100 36
R
R
11 NT-DDJN R /L2020K11X h h 20 20 25 125 36 DN 1104
NT-DDJN R /L2525M11X h h 25 25 32 150 36
NT-DDJN /L2020K1506X h h 20 20 25 125 43
R
DN 1506
15 NT-DDJN /L2525M1506X h h 25 25 32 150 43 (DN 1504)*
R
NT-DDJN /L3225P1506X h h 32 25 32 170 43
R
h stock standard *For DN1504 please purchase separately shim NT-SH025
GROOVING Spare Parts SHIM SHIM SCREW SHIM WRENCH CLAMP SPRING CLAMP SCREW CLAMP WRENCH

R
NT-DDJN /L1616H11X
NT-DDJN R /L2020K11X NT-SH007 NT-ST250 NT-WR020 NT-CS250 NT-SG250 NT-SC250 NT-TX15
NT-DDJN R /L2525M11X
R
NT-DDJN /L2020K1506X
NT-DDJN /L2525M1506X NT-SH045* NT-ST200 NT-WR025 NT-CS200 NT-SG200 NT-SC200 NT-TX20
R
NT-DDJN /L3225P1506X
R
MILLING *Shim for DNMG1504: NT-SH025

CARBIDE PCBN CERAMIC DIAMOND
Inserts

DN 1104 page 16 - - -
DN  1504 - page 43 - -
DN  1506 page 16 page 43 page 59 page 75
DRILLING

ACCESSORIES
