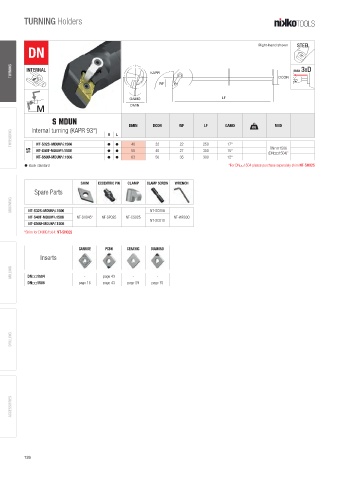

Page 128 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
DN

TURNING INTERNAL KAPR DCON max 3XD

WF

GAMO LF
M DMIN
S MDUN
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 93°)
THREADING NT-S32S-MDUN /L1506 h h L 40 32 22 250 17°
R
R
DN 1506
15 NT-S40T-MDUN /L1506 h h 50 40 27 350 15° (DN 1504)*
R
NT-S50U-MDUN /L1506 h h 63 50 35 300 12°
R
h stock standard *For DN1504 please purchase separately shim NT-SH025

SHIM ECCENTRIC PIN CLAMP CLAMP SCREW WRENCH
Spare Parts
GROOVING NT-S32S-MDUN /L1506 NT-SC008

R
R
NT-S40T-MDUN /L1506 NT-SH045* NT-SP025 NT-CS025 NT-WR030
NT-SC010
NT-S50U-MDUN /L1506
R
*Shim for DNMG1504: NT-SH025
CARBIDE PCBN CERAMIC DIAMOND
Inserts
MILLING DN 1504 - page 43 - -

DN  1506 page 16 page 43 page 59 page 75

DRILLING

ACCESSORIES
