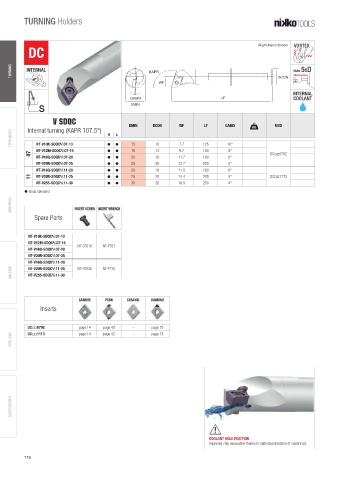

TURNING Holders

Right-hand shown VORTEX
DC

TURNING INTERNAL KAPR max 5XD

WF DCON
INTERNAL
GAMO LF COOLANT
S DMIN
V SDQC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 107.5°)
THREADING NT-V10K-SDQC /L07-13 h h L 13 10 7.7 125 10°
R
R
NT-V12M-SDQC /L07-16 h h 16 12 9.7 150 8°
R
07 DC  0702
NT-V16Q-SDQC /L07-20 h h 20 16 11.7 180 6°
R
NT-V20R-SDQC R /L07-25 h h 25 20 13.7 200 5°
R
NT-V16Q-SDQC /L11-20 h h 20 16 11.5 180 6°
11 NT-V20R-SDQC /L11-25 h h 25 20 14.4 200 5° DC  11T3
R
R
NT-V25S-SDQC /L11-30 h h 30 25 16.9 250 4°
h stock standard
GROOVING INSERT SCREW INSERT WRENCH
Spare Parts

NT-V10K-SDQC /L07-13
R
NT-V12M-SDQC /L07-16
R
NT-ST010 NT-FT07
R
NT-V16Q-SDQC /L07-20
NT-V20R-SDQC R /L07-25
NT-V16Q-SDQC /L11-20
R
MILLING NT-V20R-SDQC /L11-25 NT-ST035 NT-FT15
R
NT-V25S-SDQC /L11-30
R
CARBIDE PCBN CERAMIC DIAMOND
Inserts

DC 0702 page 14 page 42 - page 73
DRILLING DC 11T3 page 14 page 42 - page 73

ACCESSORIES

COOLANT HOLE POSITION
Improved chip evacuation thanks to optimized direction of coolant jet

116
