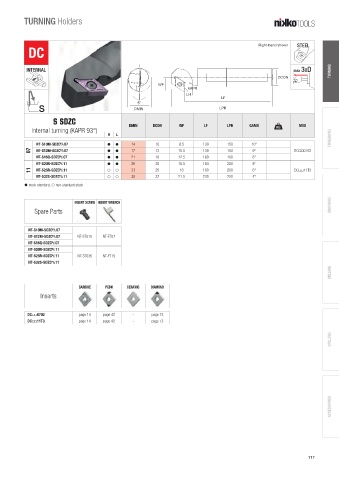

TURNING Holders

Right-hand shown STEEL
DC

INTERNAL max 3XD TURNING
DCON
WF
KAPR
LH
LF
5°
S DMIN LPR
S SDZC
DMIN DCON WF LF LPR GAMO A MIID
Internal turning (KAPR 93°)
R L THREADING
NT-S10M-SDZC /L07 h h 14 10 8.5 139 150 10°
R
07 NT-S12M-SDZC R /L07 h h 17 12 10.5 139 150 9° DC  0702
NT-S16Q-SDZC R /L07 h h 21 16 12.5 169 180 8°
R
NT-S20R-SDZC /L11 h h 26 20 15.5 184 200 8°
11 NT-S25R-SDZC /L11 f f 33 25 18 180 200 6° DC  11T3
R
NT-S32S-SDZC /L11 f f 38 32 21.5 230 250 4°
R
h stock standard, f non-standard stock
INSERT SCREW INSERT WRENCH GROOVING
Spare Parts

R
NT-S10M-SDZC /L07
NT-S12M-SDZC R /L07 NT-ST010 NT-FT07
NT-S16Q-SDZC R /L07
NT-S20R-SDZC /L11
R
R
NT-S25R-SDZC /L11 NT-ST035 NT-FT15
NT-S32S-SDZC /L11
R
MILLING

CARBIDE PCBN CERAMIC DIAMOND
Inserts

DC 0702 page 14 page 42 - page 73
DC  11T3 page 14 page 42 - page 73

DRILLING

ACCESSORIES

117
