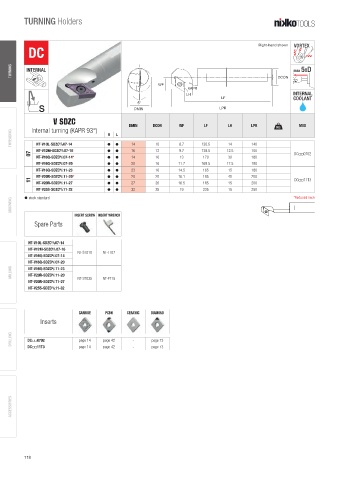

Page 120 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown VORTEX
DC

TURNING INTERNAL DCON max 5XD

WF
KAPR
LH INTERNAL
LF COOLANT
5°
S DMIN LPR
V SDZC
DMIN DCON WF LF LH LPR A MIID
Internal turning (KAPR 93°)
THREADING NT-V10L-SDZC /L07-14 h h L 14 10 8.7 130.5 14 140
R
R
NT-V12M-SDZC /L07-16 h h 16 12 9.7 139.5 12.5 150
R
07 DC  0702
NT-V16Q-SDZC /L07-14* h h 14 16 13 170 30 180
R
NT-V16Q-SDZC R /L07-20 h h 20 16 11.7 169.5 17.5 180
NT-V16Q-SDZC /L11-23 h h 23 16 14.5 165 15 180
R
NT-V20R-SDZC /L11-20* h h 20 20 16.1 185 40 200
R
11 DC  11T3
R
NT-V20R-SDZC /L11-27 h h 27 20 16.5 185 15 200
R
NT-V25S-SDZC /L11-32 h h 32 25 19 235 15 250 *Reduced neck
GROOVING h stock standard
INSERT SCREW INSERT WRENCH
Spare Parts

NT-V10L-SDZC /L07-14
R
R
NT-V12M-SDZC /L07-16
NT-ST010 NT-FT07
NT-V16Q-SDZC /L07-14
R
NT-V16Q-SDZC R /L07-20
MILLING NT-V16Q-SDZC /L11-23
R
NT-V20R-SDZC /L11-20
R
NT-V20R-SDZC /L11-27 NT-ST035 NT-FT15
R
NT-V25S-SDZC /L11-32
R
CARBIDE PCBN CERAMIC DIAMOND
Inserts

DRILLING DC 0702 page 14 page 42 - page 73

DC  11T3 page 14 page 42 - page 73

ACCESSORIES
