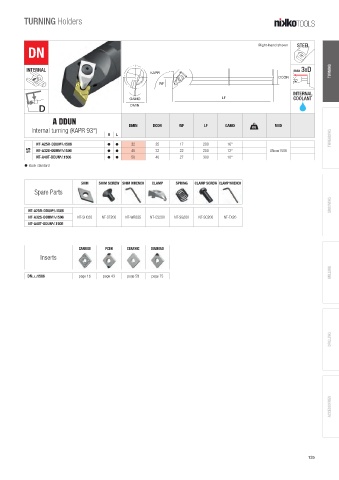

Page 127 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
DN

INTERNAL max 3XD TURNING
KAPR
DCON
WF
INTERNAL
GAMO LF COOLANT
D DMIN
A DDUN
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 93°)
R L THREADING
R
NT-A25R-DDUN /L1506 h h 32 25 17 200 16°
15 NT-A32S-DDUN /L1506 h h 40 32 22 250 12° DN 1506
R
NT-A40T-DDUN /L1506 h h 50 40 27 300 10°
R
h stock standard

SHIM SHIM SCREW SHIM WRENCH CLAMP SPRING CLAMP SCREW CLAMP WRENCH
Spare Parts
GROOVING

NT-A25R-DDUN /L1506
R
NT-A32S-DDUN /L1506 NT-SH020 NT-ST200 NT-WR025 NT-CS200 NT-SG200 NT-SC200 NT-TX20
R
NT-A40T-DDUN /L1506
R

CARBIDE PCBN CERAMIC DIAMOND
Inserts
MILLING
DN 1506 page 16 page 43 page 59 page 75

DRILLING

ACCESSORIES

125
