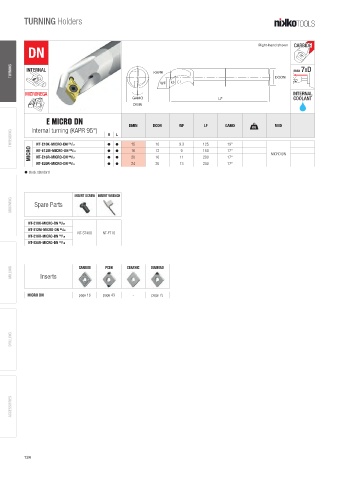

Page 126 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown CARBIDE
DN

TURNING INTERNAL KAPR max 7XD

WF DCON
MICRONEGA INTERNAL
GAMO LF COOLANT
DMIN
E MICRO DN
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 95°)
THREADING NT-E10K-MICRO-DN /LH h h L 15 10 9.3 125 19°
R
RH
MICRO NT-E12M-MICRO-DN /LH h h 16 12 11 150 17° MICRO DN
9
RH
200
h
16
20
17°
h
RH
NT-E16R-MICRO-DN /LH
RH h h 24 20 13 200 17°
NT-E20R-MICRO-DN /LH
h stock standard
INSERT SCREW INSERT WRENCH
GROOVING Spare Parts
RH
NT-E10K-MICRO-DN /LH
RH
NT-E12M-MICRO-DN /LH
NT-ST400 NT-FT10
RH
NT-E16R-MICRO-DN /LH
RH
NT-E20R-MICRO-DN /LH
MILLING Inserts CARBIDE PCBN CERAMIC DIAMOND

MICRO DN page 16 page 43 - page 75

DRILLING

ACCESSORIES

124
