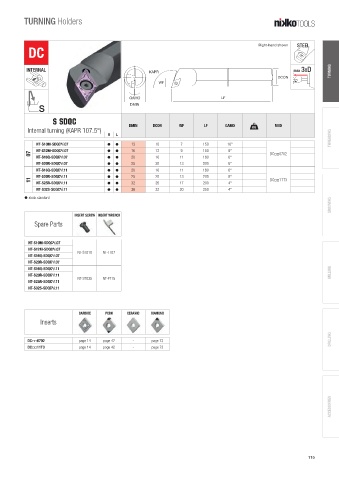

Page 117 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
DC

INTERNAL max 3XD
KAPR TURNING
DCON
WF

GAMO LF
S DMIN
S SDQC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 107.5°)
R L THREADING
NT-S10M-SDQC /L07 h h 13 10 7 150 10°
R
R
NT-S12M-SDQC /L07 h h 16 12 9 150 8°
07 DC  0702
NT-S16Q-SDQC /L07 h h 20 16 11 180 6°
R
NT-S20R-SDQC R /L07 h h 25 20 13 200 6°
R
NT-S16Q-SDQC /L11 h h 20 16 11 180 6°
NT-S20R-SDQC /L11 h h 25 20 13 200 8°
R
11 DC  11T3
R
NT-S25R-SDQC /L11 h h 32 25 17 200 4°
R
NT-S32S-SDQC /L11 h h 38 32 20 250 4°
h stock standard
GROOVING
INSERT SCREW INSERT WRENCH
Spare Parts
R
NT-S10M-SDQC /L07
NT-S12M-SDQC /L07
R
NT-ST010 NT-FT07
NT-S16Q-SDQC /L07
R
NT-S20R-SDQC R /L07
R
NT-S16Q-SDQC /L11
NT-S20R-SDQC /L11 MILLING
R
NT-ST035 NT-FT15
NT-S25R-SDQC /L11
R
R
NT-S32S-SDQC /L11
CARBIDE PCBN CERAMIC DIAMOND
Inserts
DRILLING
DC 0702 page 14 page 42 - page 73
DC  11T3 page 14 page 42 - page 73

ACCESSORIES

115
