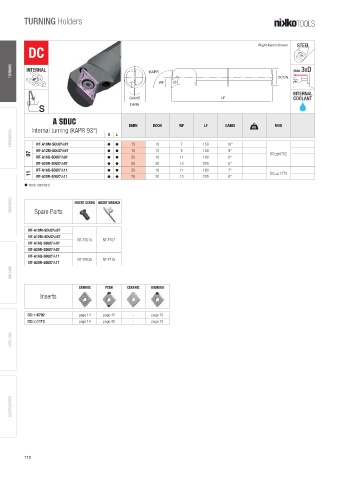

Page 114 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
DC

TURNING INTERNAL KAPR max 3XD

WF DCON
INTERNAL
GAMO LF COOLANT
S DMIN
A SDUC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 93°)
THREADING NT-A10M-SDUC /L07 h h L 13 10 7 150 10°
R
R
NT-A12M-SDUC /L07 h h 16 12 9 150 8°
R
07 DC  0702
NT-A16Q-SDUC /L07 h h 20 16 11 180 6°
R
NT-A20R-SDUC R /L07 h h 25 20 13 200 5°
NT-A16Q-SDUC /L11 h h 20 16 11 180 7°
R
11 DC  11T3
NT-A20R-SDUC R /L11 h h 25 20 13 200 8°
h stock standard
GROOVING Spare Parts INSERT SCREW INSERT WRENCH

R
NT-A10M-SDUC /L07
NT-A12M-SDUC /L07
R
NT-ST010 NT-FT07
NT-A16Q-SDUC /L07
R
NT-A20R-SDUC R /L07
NT-A16Q-SDUC /L11
R
NT-ST035 NT-FT15
NT-A20R-SDUC R /L11
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

DC 0702 page 14 page 42 - page 73
DC  11T3 page 14 page 42 - page 73

DRILLING

ACCESSORIES

112
