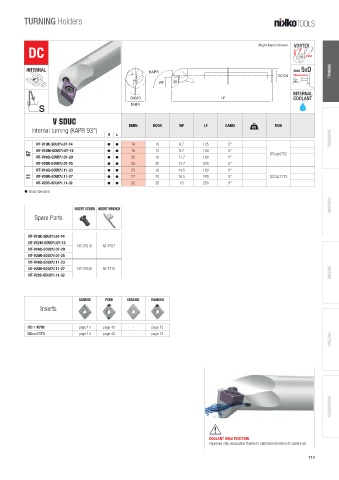

Page 115 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown VORTEX
DC

INTERNAL max 5XD
KAPR TURNING
DCON
WF
INTERNAL
GAMO LF COOLANT
S DMIN
V SDUC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 93°)
R L THREADING
NT-V10K-SDUC /L07-14 h h 14 10 8.7 125 5°
R
R
NT-V12M-SDUC /L07-16 h h 16 12 9.7 150 5°
07 DC  0702
NT-V16Q-SDUC /L07-20 h h 20 16 11.7 180 5°
R
NT-V20R-SDUC R /L07-25 h h 25 20 13.7 200 5°
R
NT-V16Q-SDUC /L11-23 h h 23 16 14.5 180 5°
11 NT-V20R-SDUC /L11-27 h h 27 20 16.5 200 5° DC  11T3
R
R
NT-V25S-SDUC /L11-32 h h 32 25 19 250 5°
h stock standard
GROOVING
INSERT SCREW INSERT WRENCH
Spare Parts

NT-V10K-SDUC /L07-14
R
NT-V12M-SDUC /L07-16
R
NT-ST010 NT-FT07
R
NT-V16Q-SDUC /L07-20
NT-V20R-SDUC R /L07-25
NT-V16Q-SDUC /L11-23
R
NT-V20R-SDUC /L11-27 NT-ST035 NT-FT15
R
NT-V25S-SDUC /L11-32 MILLING
R
CARBIDE PCBN CERAMIC DIAMOND
Inserts

DC 0702 page 14 page 42 - page 73
DC  11T3 page 14 page 42 - page 73
DRILLING

ACCESSORIES

COOLANT HOLE POSITION
Improved chip evacuation thanks to optimized direction of coolant jet

113
