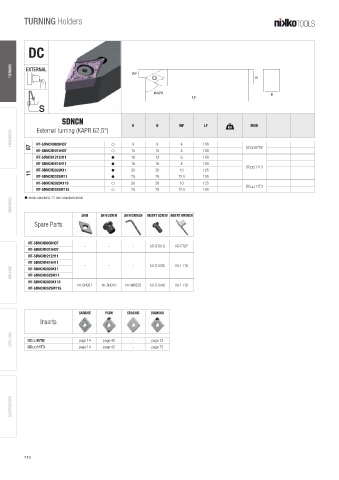

Page 112 - Nikko Tools - Update 2019

TURNING Holders

DC

TURNING EXTERNAL WF B

KAPR H
LF
S
SDNCN
H B WF LF A MIID
External turning (KAPR 62.5°)
THREADING NT-SDNCN0808H07 f 8 8 4 100

07
NT-SDNCN1010H07 f 10 10 5 100 DC  0702
NT-SDNCN1212H11 h 12 12 6 100
NT-SDNCN1616H11 h 16 16 8 100
DC  11T3
NT-SDNCN2020K11 h 20 20 10 125
11
NT-SDNCN2525M11 h 25 25 12.5 150
NT-SDNCN2020K11S f 20 20 10 125
DC  11T3
NT-SDNCN2525M11S f 25 25 12.5 150
GROOVING h stock standard, f non-standard stock

SHIM SHIM SCREW SHIM WRENCH INSERT SCREW INSERT WRENCH
Spare Parts

NT-SDNCN0808H07
- - - NT-ST010 NT-FT07
NT-SDNCN1010H07
NT-SDNCN1212H11
NT-SDNCN1616H11
- - - NT-ST035 NT-FT15
MILLING NT-SDNCN2020K11
NT-SDNCN2525M11
NT-SDNCN2020K11S
NT-SH007 NT-SR010 NT-WR035 NT-ST040 NT-FT15
NT-SDNCN2525M11S

CARBIDE PCBN CERAMIC DIAMOND
Inserts

DRILLING DC 0702 page 14 page 42 - page 73

DC  11T3 page 14 page 42 - page 73

ACCESSORIES
