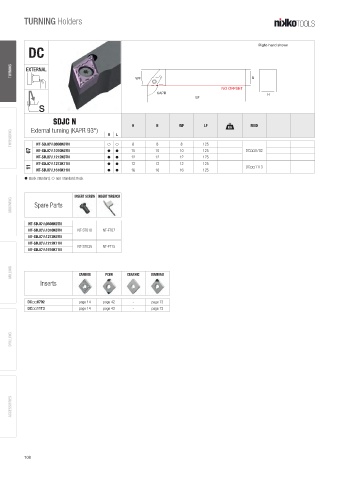

Page 110 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
DC

TURNING EXTERNAL

WF B
NO OFFSET
KAPR H
LF
S
SDJC N
H B WF LF A MIID
External turning (KAPR 93°)
THREADING NT-SDJC /L0808K07N f f L 8 8 8 125
R
R
07 NT-SDJC R /L1010K07N h h 10 10 10 125 DC  0702
NT-SDJC R /L1212K07N h h 12 12 12 125
NT-SDJC /L1212K11N h h 12 12 12 125
R
11 DC  11T3
NT-SDJC R /L1616K11N h h 16 16 16 125
h stock standard, f non-standard stock

INSERT SCREW INSERT WRENCH
GROOVING Spare Parts

NT-SDJC /L0808K07N
R
NT-SDJC R /L1010K07N NT-ST010 NT-FT07
NT-SDJC R /L1212K07N
NT-SDJC /L1212K11N
R
NT-ST035 NT-FT15
NT-SDJC R /L1616K11N
MILLING CARBIDE PCBN CERAMIC DIAMOND

Inserts

DC 0702 page 14 page 42 - page 73
DC  11T3 page 14 page 42 - page 73

DRILLING

ACCESSORIES
