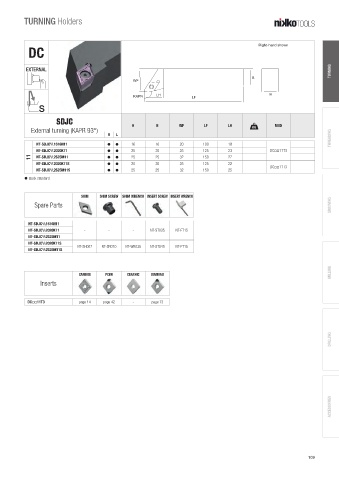

TURNING Holders

Right-hand shown
DC

TURNING
EXTERNAL
B
WF

KAPR LH LF H
S
SDJC
H B WF LF LH A MIID
External turning (KAPR 93°)
R L THREADING
NT-SDJC /L1616H11 h h 16 16 20 100 18
R
NT-SDJC R /L2020K11 h h 20 20 25 125 23 DC  11T3
11 NT-SDJC R /L2525M11 h h 25 25 32 150 27
R
NT-SDJC /L2020K11S h h 20 20 25 125 22
DC  11T3
NT-SDJC R /L2525M11S h h 25 25 32 150 25
h stock standard

SHIM SHIM SCREW SHIM WRENCH INSERT SCREW INSERT WRENCH
GROOVING
Spare Parts

NT-SDJC /L1616H11
R
NT-SDJC R /L2020K11 - - - NT-ST035 NT-FT15
NT-SDJC R /L2525M11
NT-SDJC /L2020K11S
R
NT-SH007 NT-SR010 NT-WR035 NT-ST040 NT-FT15
NT-SDJC R /L2525M11S
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

DC 11T3 page 14 page 42 - page 73

DRILLING

ACCESSORIES

109
