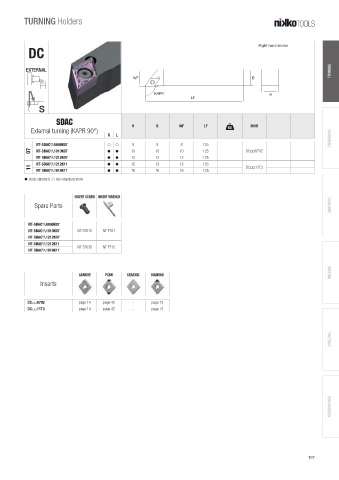

TURNING Holders

Right-hand shown
DC

TURNING
EXTERNAL
WF B

KAPR H
LF
S

SDAC
H B WF LF A MIID
External turning (KAPR 90°)
R L THREADING
NT-SDAC /L0808K07 f f 8 8 8 125
R
07 NT-SDAC R /L1010K07 h h 10 10 10 125 DC  0702
NT-SDAC R /L1212K07 h h 12 12 12 125
NT-SDAC /L1212K11 h h 12 12 12 125
R
11 DC  11T3
NT-SDAC R /L1616K11 h h 16 16 16 125
h stock standard, f non-standard stock

INSERT SCREW INSERT WRENCH
Spare Parts GROOVING

NT-SDAC /L0808K07
R
NT-SDAC R /L1010K07 NT-ST010 NT-FT07
NT-SDAC R /L1212K07
NT-SDAC /L1212K11
R
NT-ST035 NT-FT15
NT-SDAC R /L1616K11
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

DC 0702 page 14 page 42 - page 73
DC  11T3 page 14 page 42 - page 73

DRILLING

ACCESSORIES

107
