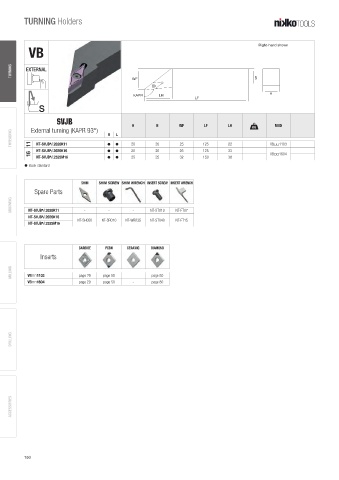

TURNING Holders

Right-hand shown
VB

TURNING EXTERNAL

WF B

H
KAPR LH
LF
S
SVJB
H B WF LF LH A MIID
External turning (KAPR 93°)
THREADING 11 NT-SVJB /L2020K11 h h L 20 20 25 125 22 VB 1103
R
R
NT-SVJB /L2020K16 h h 20 20 25 125 33
R
16 VB 1604
NT-SVJB R /L2525M16 h h 25 25 32 150 38
h stock standard

SHIM SHIM SCREW SHIM WRENCH INSERT SCREW INSERT WRENCH
Spare Parts
GROOVING NT-SVJB /L2020K11 - - - NT-ST010 NT-FT07

R
NT-SVJB /L2020K16
R
NT-SH050 NT-SR010 NT-WR035 NT-ST040 NT-FT15
NT-SVJB R /L2525M16

CARBIDE PCBN CERAMIC DIAMOND
Inserts
MILLING VB 1103 page 29 page 50 - page 80

VB 1604 page 29 page 50 - page 80

DRILLING

ACCESSORIES

150
