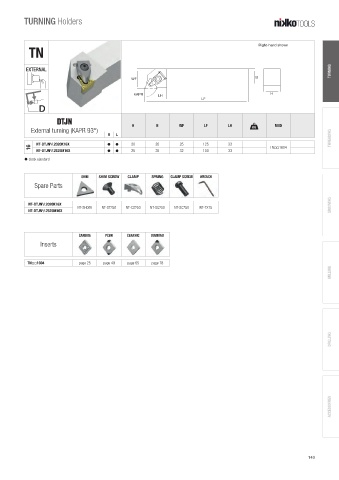

Page 145 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
TN

TURNING
EXTERNAL
WF B

KAPR LH H
LF
D
DTJN
H B WF LF LH A MIID
External turning (KAPR 93°)
R L THREADING
R
NT-DTJN /L2020K16X h h 20 20 25 125 33
16 TN 1604
R
NT-DTJN /L2525M16X h h 25 25 32 150 33
h stock standard

SHIM SHIM SCREW CLAMP SPRING CLAMP SCREW WRENCH
Spare Parts

NT-DTJN /L2020K16X GROOVING
R
NT-SH006 NT-ST250 NT-CS250 NT-SG250 NT-SC250 NT-TX15
NT-DTJN /L2525M16X
R
CARBIDE PCBN CERAMIC DIAMOND
Inserts

TN 1604 page 25 page 48 page 65 page 78
MILLING

DRILLING

ACCESSORIES
