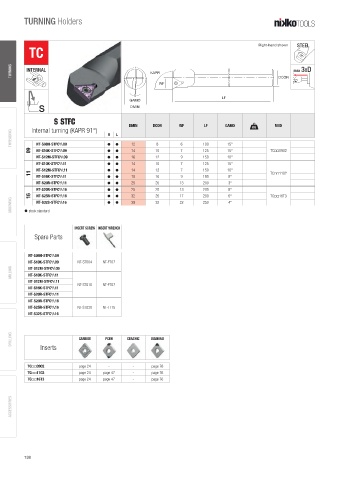

Page 140 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
TC

TURNING INTERNAL KAPR DCON max 3XD

WF

LF
GAMO
S DMIN
S STFC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 91°)
THREADING NT-S08H-STFC /L09 h h L 12 8 6 100 15°
R
R
09 NT-S10K-STFC R /L09 h h 14 10 7 125 15° TC 0902
NT-S12M-STFC R /L09 h h 16 12 9 150 10°
NT-S10K-STFC /L11 h h 14 10 7 125 15°
R
NT-S12M-STFC R /L11 h h 14 12 7 150 10°
11 TC 1102
NT-S16K-STFC /L11 h h 18 16 9 180 8°
R
NT-S20R-STFC R /L11 h h 25 20 13 200 3°
R
NT-S20R-STFC /L16 h h 25 20 13 200 8°
16 NT-S25R-STFC /L16 h h 32 25 17 200 6° TC 16T3
R
GROOVING h stock standard R h h 39 32 22 250 4°
NT-S32S-STFC /L16
INSERT SCREW INSERT WRENCH
Spare Parts

R
NT-S08H-STFC /L09
NT-S10K-STFC R /L09 NT-ST004 NT-FT07
MILLING NT-S12M-STFC R /L09
R
NT-S10K-STFC /L11
NT-S12M-STFC R /L11
NT-ST010 NT-FT07
NT-S16K-STFC /L11
R
NT-S20R-STFC R /L11
NT-S20R-STFC /L16
R
NT-S25R-STFC /L16 NT-ST030 NT-FT15
R
NT-S32S-STFC /L16
R
DRILLING CARBIDE PCBN CERAMIC DIAMOND

Inserts

TC 0902 page 24 - - page 76
TC  1102 page 24 page 47 - page 76
TC  16T3 page 24 page 47 - page 76

ACCESSORIES

138
