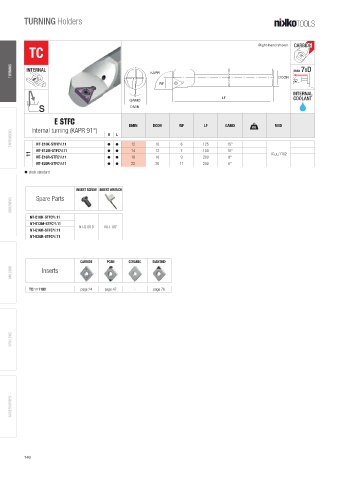

Page 142 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown CARBIDE
TC

TURNING INTERNAL KAPR DCON max 7XD

WF
INTERNAL
LF COOLANT
GAMO
S DMIN
E STFC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 91°)
THREADING NT-E10K-STFC /L11 h h L 12 10 6 125 15°
R
R
NT-E12M-STFC R /L11 h h 14 12 7 150 10°
11 TC 1102
NT-E16R-STFC /L11 h h 18 16 9 200 8°
R
NT-E20R-STFC /L11 h h 22 20 11 200 6°
R
h stock standard
INSERT SCREW INSERT WRENCH
GROOVING Spare Parts

NT-E10K-STFC /L11
R
R
NT-E12M-STFC /L11
NT-ST010 NT-FT07
NT-E16R-STFC /L11
R
R
NT-E20R-STFC /L11
CARBIDE PCBN CERAMIC DIAMOND
MILLING Inserts

TC 1102 page 24 page 47 - page 76

DRILLING

ACCESSORIES
