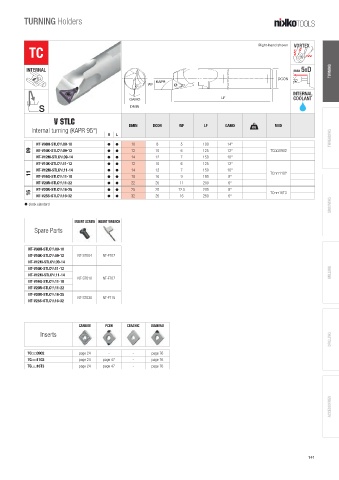

Page 143 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown VORTEX
TC

TURNING
INTERNAL max 5XD
DCON
KAPR
WF
INTERNAL
GAMO LF COOLANT
S DMIN
V STLC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 95°)
R L THREADING
R
NT-V08H-STLC /L09-10 h h 10 8 5 100 14°
09 NT-V10K-STLC R /L09-12 h h 12 10 6 125 12° TC 0902
NT-V12M-STLC R /L09-14 h h 14 12 7 150 10°
NT-V10K-STLC /L11-12 h h 12 10 6 125 12°
R
NT-V12M-STLC R /L11-14 h h 14 12 7 150 10°
11 TC 1102
NT-V16Q-STLC /L11-18 h h 18 16 9 180 8°
R
NT-V20R-STLC R /L11-22 h h 22 20 11 200 6°
NT-V20R-STLC /L16-25 h h 25 20 12.5 200 8°
R
16 TC 16T3
NT-V25S-STLC R /L16-32 h h 32 25 16 250 6°
GROOVING
h stock standard
INSERT SCREW INSERT WRENCH
Spare Parts

NT-V08H-STLC /L09-10
R
NT-V10K-STLC R /L09-12 NT-ST004 NT-FT07
NT-V12M-STLC R /L09-14
NT-V10K-STLC /L11-12
R
NT-V12M-STLC R /L11-14 MILLING
NT-ST010 NT-FT07
NT-V16Q-STLC /L11-18
R
NT-V20R-STLC R /L11-22
R
NT-V20R-STLC /L16-25
NT-ST030 NT-FT15
NT-V25S-STLC R /L16-32
CARBIDE PCBN CERAMIC DIAMOND
Inserts
DRILLING

TC 0902 page 24 - - page 76
TC  1102 page 24 page 47 - page 76
TC  16T3 page 24 page 47 - page 76

ACCESSORIES

141
