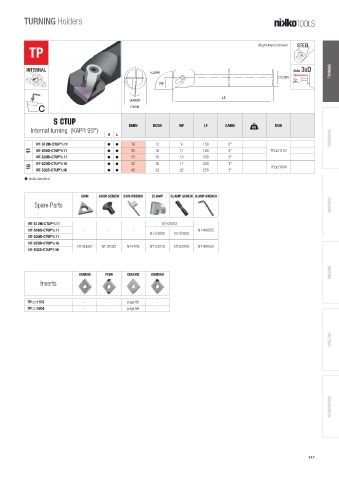

TURNING Holders

Right-hand shown STEEL
TP

INTERNAL max 3XD TURNING
KAPR
DCON
WF

LF
GAMO
C DMIN
S CTUP
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 93°)
R L THREADING
NT-S12M-CTUP /L11 h h 16 12 9 150 0°
R
11 NT-S16Q-CTUP R /L11 h h 20 16 11 180 3° TP 1103
NT-S20R-CTUP R /L11 h h 25 20 13 200 3°
NT-S25R-CTUP /L16 h h 32 25 17 200 3°
R
16 TP 1604
NT-S32S-CTUP R /L16 h h 40 32 22 250 3°
h stock standard

SHIM SHIM SCREW SHIM WRENCH CLAMP CLAMP SCREW CLAMP WRENCH
GROOVING
Spare Parts

NT-S12M-CTUP /L11 NT-CS003
R
NT-S16Q-CTUP R /L11 - - - NT-WR025
NT-CS005 NT-SC005
NT-S20R-CTUP R /L11
NT-S25R-CTUP /L16
R
NT-SH002 NT-ST022 NT-FT06 NT-CS010 NT-SC008 NT-WR030
NT-S32S-CTUP R /L16
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

TP 1103 - - page 66 -
TP  1604 - - page 66 -

DRILLING

ACCESSORIES
