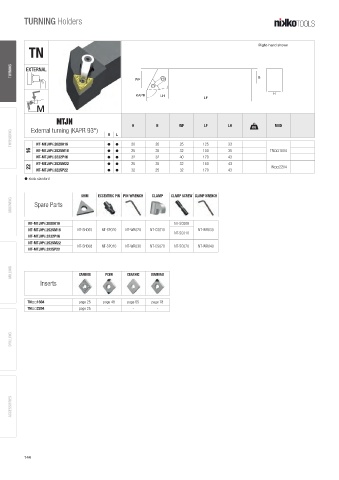

Page 146 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
TN

TURNING EXTERNAL

WF B

H
KAPR LH
LF
M
MTJN
H B WF LF LH A MIID
External turning (KAPR 93°)
THREADING NT-MTJN /L2020K16 h h L 20 20 25 125 33
R
R
16 NT-MTJN R /L2525M16 h h 25 25 32 150 35 TN 1604
NT-MTJN R /L3232P16 h h 32 32 40 170 43
NT-MTJN /L2525M22 h h 25 25 32 150 43
R
22 TN 2204
NT-MTJN R /L3225P22 h h 32 25 32 170 43
h stock standard

SHIM ECCENTRIC PIN PIN WRENCH CLAMP CLAMP SCREW CLAMP WRENCH
GROOVING Spare Parts

R
NT-MTJN /L2020K16 NT-SC008
NT-MTJN R /L2525M16 NT-SH005 NT-SP020 NT-WR020 NT-CS010 NT-WR030
NT-SC010
NT-MTJN R /L3232P16
NT-MTJN /L2525M22
R
NT-SH008 NT-SP010 NT-WR030 NT-CS070 NT-SC070 NT-WR040
NT-MTJN R /L3225P22
MILLING CARBIDE PCBN CERAMIC DIAMOND

Inserts

TN 1604 page 25 page 48 page 65 page 78
TN  2204 page 25 - - -

DRILLING

ACCESSORIES
