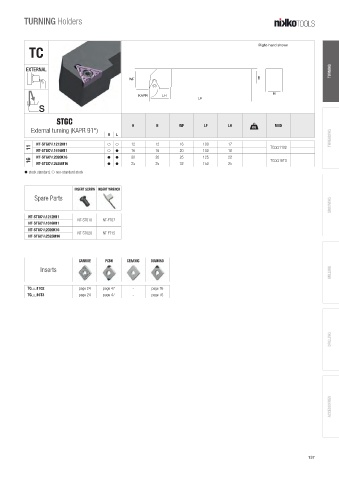

Page 139 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
TC

TURNING
EXTERNAL
WF B

H
KAPR LH
LF
S
STGC
H B WF LF LH A MIID
External turning (KAPR 91°)
R L THREADING
NT-STGC /L1212H11 f f 12 12 16 100 17
R
11 TC 1102
R
NT-STGC /L1616H11 f h 16 16 20 100 18
R
NT-STGC /L2020K16 h h 20 20 25 125 22
16 TC 16T3
NT-STGC R /L2525M16 h h 25 25 32 150 25
h stock standard, f non-standard stock
INSERT SCREW INSERT WRENCH
Spare Parts
GROOVING

NT-STGC /L1212H11
R
NT-ST010 NT-FT07
NT-STGC R /L1616H11
NT-STGC /L2020K16
R
NT-ST020 NT-FT15
NT-STGC R /L2525M16

CARBIDE PCBN CERAMIC DIAMOND
MILLING
Inserts

TC 1102 page 24 page 47 - page 76
TC  16T3 page 24 page 47 - page 76

DRILLING

ACCESSORIES
