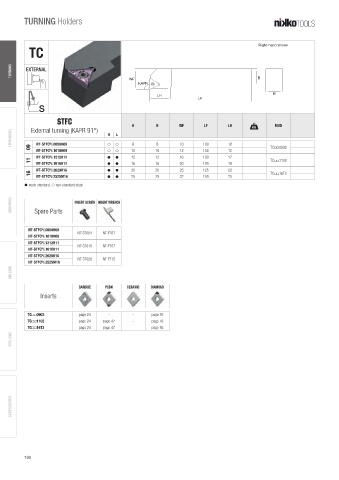

Page 138 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
TC

TURNING EXTERNAL

WF B
KAPR
H
LH
LF
S
STFC
H B WF LF LH A MIID
External turning (KAPR 91°)
THREADING NT-STFC /L0808H09 f f L 8 8 10 100 12
R
R
09
NT-STFC /L1010H09 f f 10 10 12 100 12 TC 0902
R
NT-STFC /L1212H11 h h 12 12 16 100 17
R
11 TC 1102
NT-STFC R /L1616H11 h h 16 16 20 100 18
NT-STFC /L2020K16 h h 20 20 25 125 22
R
16 TC 16T3
NT-STFC R /L2525M16 h h 25 25 32 150 25
h stock standard, f non-standard stock
GROOVING Spare Parts INSERT SCREW INSERT WRENCH

R
NT-STFC /L0808H09
NT-ST004 NT-FT07
NT-STFC R /L1010H09
R
NT-STFC /L1212H11
NT-ST010 NT-FT07
NT-STFC R /L1616H11
NT-STFC /L2020K16
R
NT-ST020 NT-FT15
NT-STFC R /L2525M16
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

TC 0902 page 24 - - page 76
TC  1102 page 24 page 47 - page 76
TC  16T3 page 24 page 47 - page 76
DRILLING

ACCESSORIES
