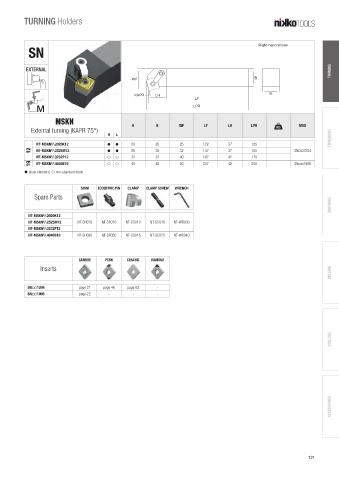

TURNING Holders

Right-hand shown
SN

TURNING
EXTERNAL
WF B

H
KAPR LH
LF
M LPR
MSKN
H B WF LF LH LPR A MIID
External turning (KAPR 75°)
R L THREADING
NT-MSKN /L2020K12 h h 20 20 25 122 37 125
R
12 NT-MSKN R /L2525M12 h h 25 25 32 147 37 150 SN 1204
NT-MSKN R /L3232P12 f f 32 32 40 167 42 170
19 NT-MSKN /L4040S19 f f 40 40 50 247 42 250 SN 1906
R
h stock standard, f non-standard stock

SHIM ECCENTRIC PIN CLAMP CLAMP SCREW WRENCH
Spare Parts
GROOVING

R
NT-MSKN /L2020K12
NT-MSKN R /L2525M12 NT-SH070 NT-SP010 NT-CS010 NT-SC010 NT-WR030
NT-MSKN R /L3232P12
NT-MSKN /L4040S19 NT-SH090 NT-SP050 NT-CS015 NT-SC070 NT-WR040
R

CARBIDE PCBN CERAMIC DIAMOND
MILLING
Inserts

SN 1204 page 21 page 46 page 63 -
SN  1906 page 22 - - -

DRILLING

ACCESSORIES
