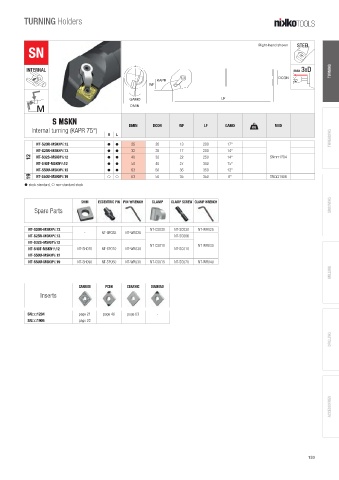

Page 135 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
SN

INTERNAL max 3XD TURNING
DCON
KAPR
WF
GAMO LF
M DMIN
S MSKN
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 75°)
R L THREADING
NT-S20R-MSKN /L12 h h 25 20 13 200 17°
R
R
NT-S25R-MSKN /L12 h h 32 25 17 200 14°
12 NT-S32S-MSKN /L12 h h 40 32 22 250 14° SN 1204
R
R
NT-S40T-MSKN /L12 h h 50 40 27 300 15°
NT-S50U-MSKN R /L12 h h 63 50 35 350 12°
19 NT-S50U-MSKN /L19 f f 63 50 35 350 8° SN 1906
R
h stock standard, f non-standard stock
SHIM ECCENTRIC PIN PIN WRENCH CLAMP CLAMP SCREW CLAMP WRENCH GROOVING
Spare Parts

NT-S20R-MSKN R /L12 NT-CS030 NT-SC030 NT-WR025
- NT-SP035 NT-WR025
R
NT-S25R-MSKN /L12 NT-SC008
R
NT-S32S-MSKN /L12
NT-CS010 NT-WR030
NT-S40T-MSKN R /L12 NT-SH070 NT-SP010 NT-WR030 NT-SC010
NT-S50U-MSKN R /L12
NT-S50U-MSKN /L19 NT-SH090 NT-SP050 NT-WR030 NT-CS015 NT-SC070 NT-WR040
R
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

SN 1204 page 21 page 46 page 63 -
SN  1906 page 22 - - -

DRILLING

ACCESSORIES
