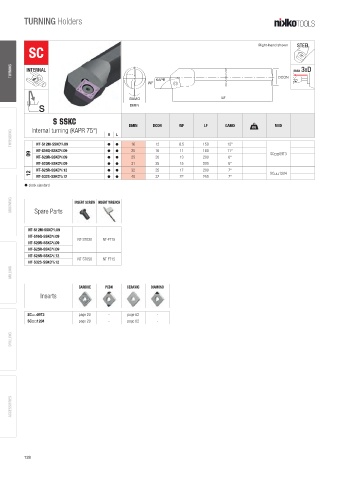

TURNING Holders

Right-hand shown STEEL
SC

TURNING INTERNAL max 3XD

KAPR DCON
WF

GAMO LF
S DMIN
S SSKC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 75°)
THREADING NT-S12M-SSKC /L09 h h L 16 12 8.5 150 12°
R
R
R
NT-S16Q-SSKC /L09 h h 20 16 11 180 11°
09 SC  09T3
NT-S20R-SSKC /L09 h h 25 20 13 200 6°
R
NT-S25R-SSKC R /L09 h h 31 25 15 200 6°
NT-S25R-SSKC /L12 h h 32 25 17 200 7°
R
12 SC  1204
NT-S32S-SSKC R /L12 h h 40 32 22 250 7°
h stock standard
GROOVING Spare Parts INSERT SCREW INSERT WRENCH

R
NT-S12M-SSKC /L09
NT-S16Q-SSKC /L09
R
NT-ST020 NT-FT15
NT-S20R-SSKC /L09
R
NT-S25R-SSKC R /L09
R
NT-S25R-SSKC /L12
NT-ST050 NT-FT15
NT-S32S-SSKC R /L12
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

SC 09T3 page 20 - page 62 -
SC  1204 page 20 - page 62 -

DRILLING

ACCESSORIES
