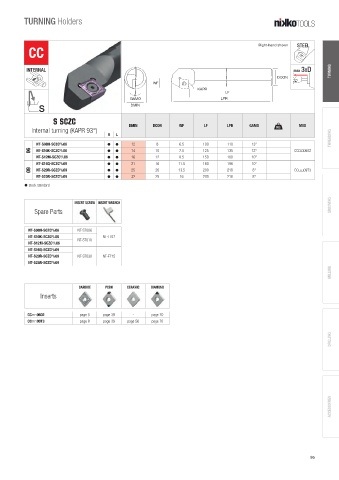

Page 97 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
CC

INTERNAL max 3XD TURNING
DCON
WF
KAPR
LF
GAMO LPR
S DMIN
S SCZC
DMIN DCON WF LF LPR GAMO A MIID
Internal turning (KAPR 93°)
R L THREADING
NT-S08H-SCZC /L06 h h 12 8 6.5 100 110 13°
R
06 NT-S10K-SCZC R /L06 h h 14 10 7.5 125 135 12° CC  0602
NT-S12M-SCZC R /L06 h h 16 12 8.5 150 160 10°
NT-S16Q-SCZC /L09 h h 21 16 11.5 180 196 10°
R
09 NT-S20R-SCZC /L09 h h 25 20 13.5 200 218 8° CC  09T3
R
NT-S25R-SCZC /L09 h h 32 25 16 200 218 8°
R
h stock standard
INSERT SCREW INSERT WRENCH GROOVING
Spare Parts

R
NT-S08H-SCZC /L06 NT-ST006
NT-S10K-SCZC R /L06 NT-FT07
NT-ST010
NT-S12M-SCZC R /L06
NT-S16Q-SCZC /L09
R
NT-S20R-SCZC /L09 NT-ST030 NT-FT15
R
NT-S25R-SCZC /L09
R
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

CC 0602 page 8 page 39 - page 70
CC  09T3 page 8 page 39 page 56 page 70

DRILLING

ACCESSORIES
