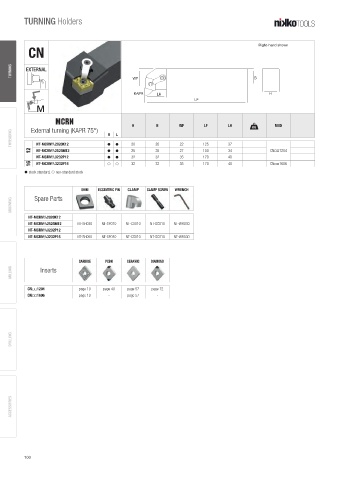

Page 102 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
CN

TURNING EXTERNAL

WF B

KAPR LH H
LF
M
MCRN
H B WF LF LH A MIID
External turning (KAPR 75°)
THREADING NT-MCRN /L2020K12 h h L 20 20 22 125 37
R
R
12 NT-MCRN R /L2525M12 h h 25 25 27 150 34 CN  1204
NT-MCRN R /L3232P12 h h 32 32 35 170 40
16 NT-MCRN /L3232P16 f f 32 32 35 170 40 CN  1606
R
h stock standard, f non-standard stock

SHIM ECCENTRIC PIN CLAMP CLAMP SCREW WRENCH
GROOVING Spare Parts

R
NT-MCRN /L2020K12
NT-MCRN R /L2525M12 NT-SH030 NT-SP010 NT-CS010 NT-SC010 NT-WR030
NT-MCRN R /L3232P12
NT-MCRN /L3232P16 NT-SH055 NT-SP040 NT-CS010 NT-SC010 NT-WR030
R

CARBIDE PCBN CERAMIC DIAMOND
MILLING Inserts

CN 1204 page 10 page 40 page 57 page 72
CN  1606 page 10 - page 57 -

DRILLING

ACCESSORIES

100
