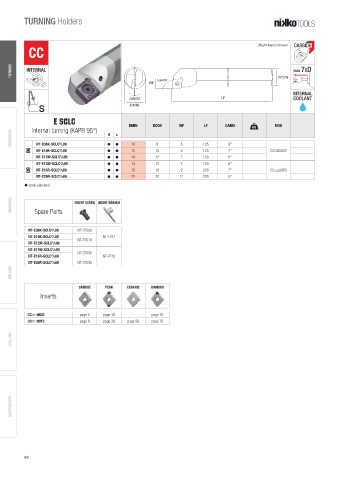

Page 96 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown CARBIDE
CC

TURNING INTERNAL max 7XD

KAPR DCON
WF
INTERNAL
GAMO LF COOLANT
S DMIN
E SCLC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 95°)
THREADING NT-E08K-SCLC /L06 h h L 10 8 5 125 9°
R
R
06 NT-E10K-SCLC R /L06 h h 12 10 6 125 7° CC  0602
NT-E12M-SCLC R /L06 h h 14 12 7 150 6°
NT-E12M-SCLC /L09 h h 14 12 7 150 6°
R
09 NT-E16R-SCLC /L09 h h 18 16 9 200 7° CC  09T3
R
NT-E20R-SCLC /L09 h h 22 20 11 200 5°
R
h stock standard
GROOVING Spare Parts INSERT SCREW INSERT WRENCH

R
NT-E08K-SCLC /L06 NT-ST006
NT-E10K-SCLC R /L06 NT-FT07
NT-ST010
NT-E12M-SCLC R /L06
NT-E12M-SCLC /L09
R
NT-ST025
NT-E16R-SCLC /L09 NT-FT15
R
NT-E20R-SCLC /L09 NT-ST030
R
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

CC 0602 page 8 page 39 - page 70
CC  09T3 page 8 page 39 page 56 page 70

DRILLING

ACCESSORIES
