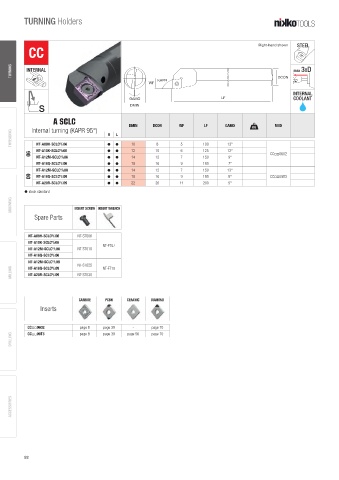

Page 94 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown STEEL
CC

TURNING INTERNAL max 3XD

KAPR DCON
WF
INTERNAL
GAMO LF COOLANT
S DMIN
A SCLC
DMIN DCON WF LF GAMO A MIID
Internal turning (KAPR 95°)
THREADING NT-A08H-SCLC /L06 h h L 10 8 5 100 13°
R
R
NT-A10K-SCLC /L06 h h 12 10 6 125 12°
R
06 CC  0602
NT-A12M-SCLC /L06 h h 14 12 7 150 9°
R
NT-A16Q-SCLC R /L06 h h 18 16 9 180 7°
R
NT-A12M-SCLC /L09 h h 14 12 7 150 13°
09 NT-A16Q-SCLC /L09 h h 18 16 9 180 9° CC  09T3
R
NT-A20R-SCLC /L09 h h 22 20 11 200 5°
R
h stock standard
GROOVING INSERT SCREW INSERT WRENCH
Spare Parts

NT-A08H-SCLC /L06 NT-ST006
R
NT-A10K-SCLC /L06
R
NT-FT07
NT-A12M-SCLC R /L06 NT-ST010
NT-A16Q-SCLC R /L06
NT-A12M-SCLC /L09
R
NT-ST025 NT-FT15
MILLING NT-A20R-SCLC /L09 NT-ST030
NT-A16Q-SCLC /L09
R
R
CARBIDE PCBN CERAMIC DIAMOND
Inserts

CC 0602 page 8 page 39 - page 70
DRILLING CC  09T3 page 8 page 39 page 56 page 70

ACCESSORIES

92
