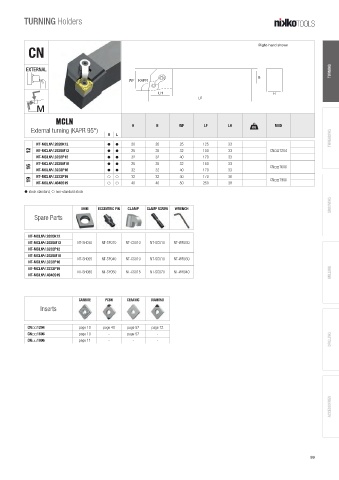

Page 101 - Nikko Tools - Update 2019

TURNING Holders

Right-hand shown
CN

TURNING
EXTERNAL
B
WF KAPR
LH H
LF
M
MCLN
H B WF LF LH A MIID
External turning (KAPR 95°)
R L THREADING
NT-MCLN /L2020K12 h h 20 20 25 125 33
R
12 NT-MCLN R /L2525M12 h h 25 25 32 150 33 CN  1204
NT-MCLN R /L3232P12 h h 32 32 40 170 33
NT-MCLN /L2525M16 h h 25 25 32 150 33
R
16 CN  1606
NT-MCLN R /L3232P16 h h 32 32 40 170 33
R
NT-MCLN /L3232P19 f f 32 32 40 170 38
19 CN  1906
NT-MCLN R /L4040S19 f f 40 40 50 250 38
h stock standard, f non-standard stock
GROOVING
SHIM ECCENTRIC PIN CLAMP CLAMP SCREW WRENCH
Spare Parts

NT-MCLN /L2020K12
R
NT-MCLN R /L2525M12 NT-SH030 NT-SP010 NT-CS010 NT-SC010 NT-WR030
NT-MCLN R /L3232P12
NT-MCLN /L2525M16
R
NT-SH055 NT-SP040 NT-CS010 NT-SC010 NT-WR030
NT-MCLN R /L3232P16
NT-MCLN /L3232P19
R
NT-SH080 NT-SP050 NT-CS015 NT-SC070 NT-WR040 MILLING
NT-MCLN R /L4040S19
CARBIDE PCBN CERAMIC DIAMOND
Inserts

CN 1204 page 10 page 40 page 57 page 72
CN  1606 page 10 - page 57 -
DRILLING
CN  1906 page 11 - - -

ACCESSORIES

99
