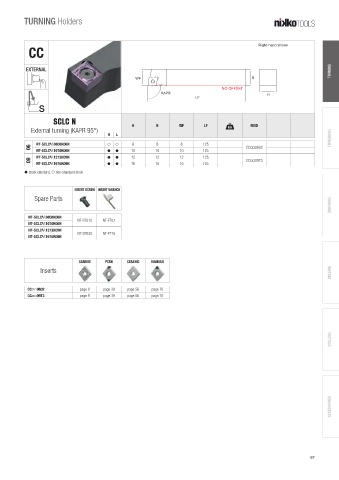

P. 89
TURNING Holders
Right-hand shown
CC
TURNING
EXTERNAL
WF B
NO OFFSET
KAPR H
LF
S
SCLC N
H B WF LF A MIID
External turning (KAPR 95°)
R L THREADING
NT-SCLC /L0808K06N f f 8 8 8 125
R
06 CC 0602
NT-SCLC /L1010K06N h h 10 10 10 125
R
R
NT-SCLC /L1212K09N h h 12 12 12 125
09 CC 09T3
NT-SCLC R /L1616K09N h h 16 16 16 125
h stock standard, f non-standard stock
INSERT SCREW INSERT WRENCH
Spare Parts
GROOVING
NT-SCLC /L0808K06N
R
NT-ST010 NT-FT07
NT-SCLC R /L1010K06N
NT-SCLC /L1212K09N
R
NT-ST030 NT-FT15
NT-SCLC R /L1616K09N
CARBIDE PCBN CERAMIC DIAMOND
MILLING
Inserts
CC 0602 page 8 page 39 page 56 page 70
CC 09T3 page 8 page 39 page 56 page 70
DRILLING
ACCESSORIES
87
