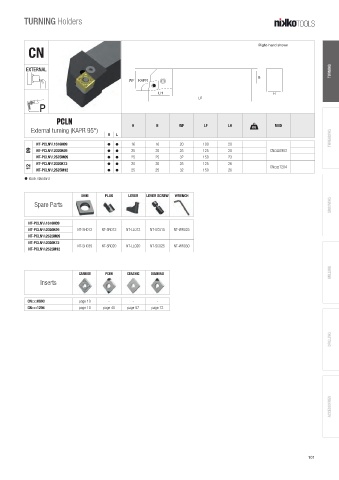

TURNING Holders

Right-hand shown
CN

TURNING
EXTERNAL
B
WF KAPR
LH H
LF
P

PCLN
H B WF LF LH A MIID
External turning (KAPR 95°)
R L THREADING
R
NT-PCLN /L1616H09 h h 16 16 20 100 20
09 NT-PCLN R /L2020K09 h h 20 20 25 125 20 CN  0903
NT-PCLN R /L2525M09 h h 25 25 32 150 23
R
NT-PCLN /L2020K12 h h 20 20 25 125 26
12 CN  1204
NT-PCLN R /L2525M12 h h 25 25 32 150 26
h stock standard

SHIM PLUG LEVER LEVER SCREW WRENCH
GROOVING
Spare Parts

NT-PCLN /L1616H09
R
NT-PCLN R /L2020K09 NT-SH012 NT-SR012 NT-LL012 NT-SC015 NT-WR025
NT-PCLN R /L2525M09
NT-PCLN /L2020K12
R
NT-SH035 NT-SR020 NT-LL020 NT-SC025 NT-WR030
NT-PCLN R /L2525M12
MILLING
CARBIDE PCBN CERAMIC DIAMOND
Inserts

CN 0903 page 10 - - -
CN  1204 page 10 page 40 page 57 page 72

DRILLING

ACCESSORIES
